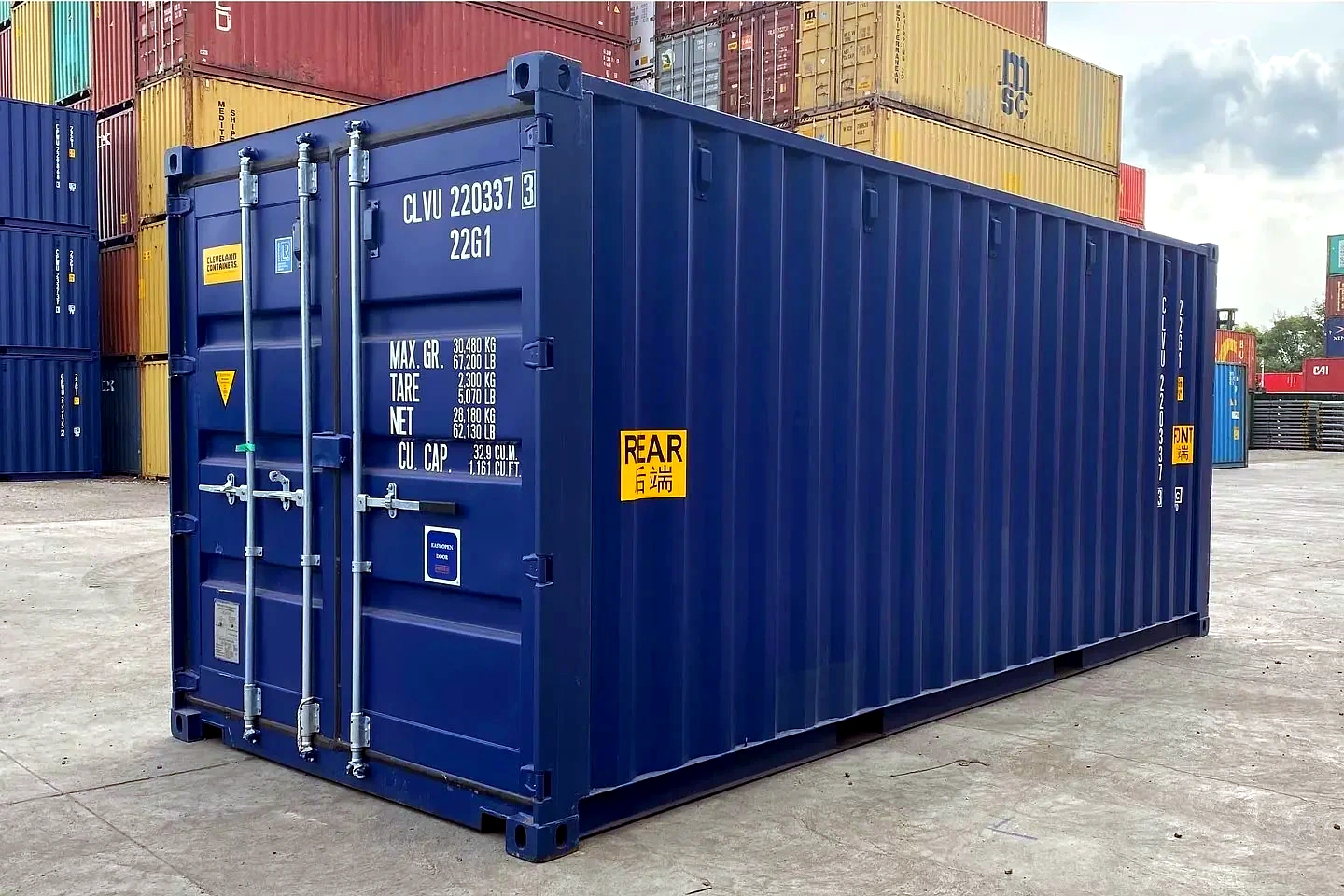

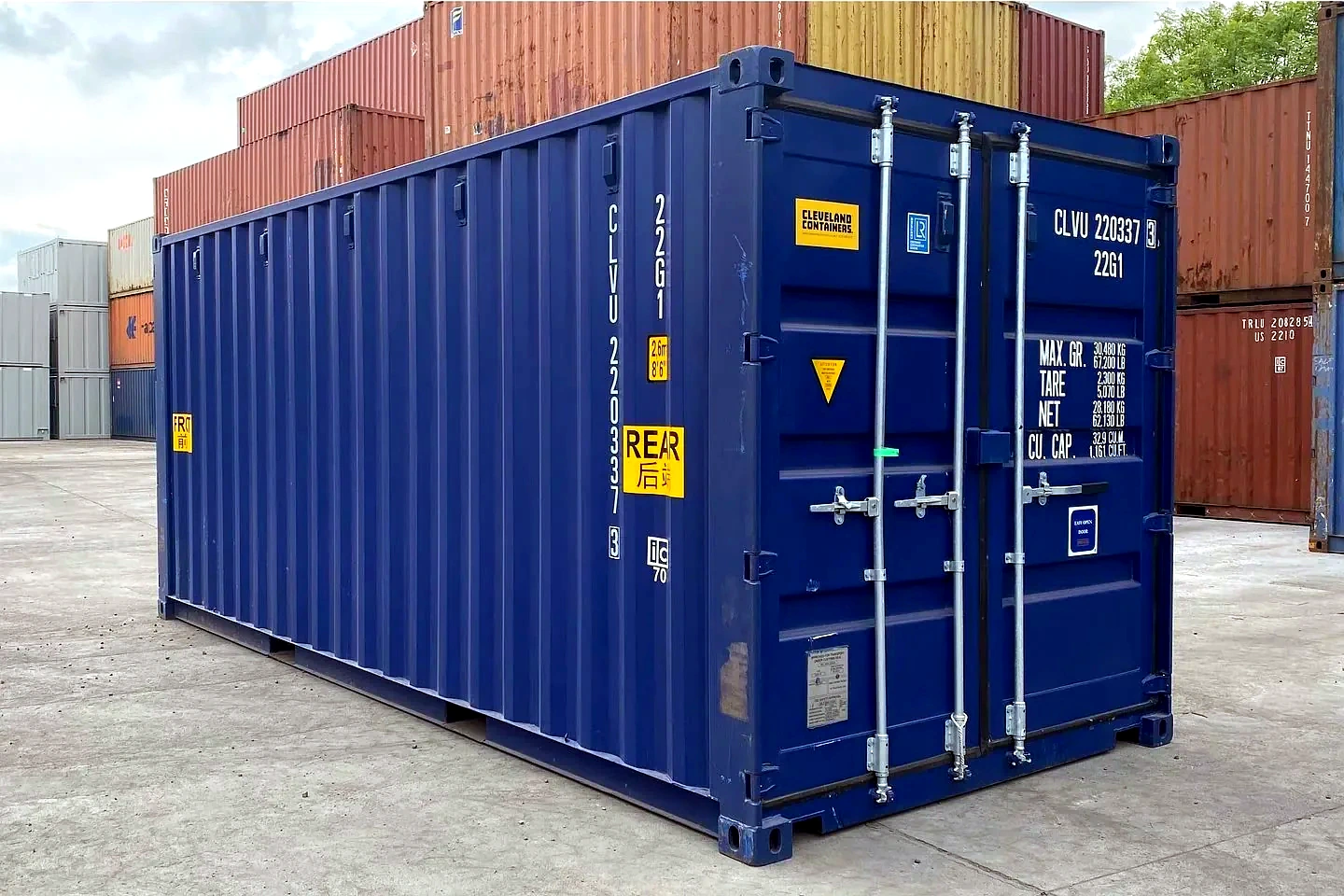

20ft Tunnel Shipping Container with Double End Doors – New One Trip | CSC Plated
$4,100.00
- 20ft standard-height tunnel shipping container
- Double cargo doors at both ends for convenient through-access
- New / One Trip condition with minimal prior use
- CSC plated with maximum gross weight up to approximately 30 tonnes
- Heavy-duty Corten weathering steel construction
- Exterior hinged double doors fitted at both 8ft ends
- Two locking bars per door
- Factory-fitted security lockbox at each end
- 28 mm marine-grade plywood floor supported by steel cross members
- Forklift pockets on both sides for easier handling and positioning
| Feature | Specification / Description |
|---|---|
| Product Type | Tunnel / Double End Door Shipping Container |
| Nominal Size | 20ft |
| Condition | New / One Trip |
| Height Configuration | Standard Height |
| External Length | Approx. 6,058 mm / 20 ft |
| External Width | Approx. 2,438 mm / 8 ft |
| External Height | Approx. 2,591 mm / 8 ft 6 in |
| Internal Length | Approx. 5,890 mm |
| Internal Width | Approx. 2,350 mm |
| Internal Height | Approx. 2,390 mm |

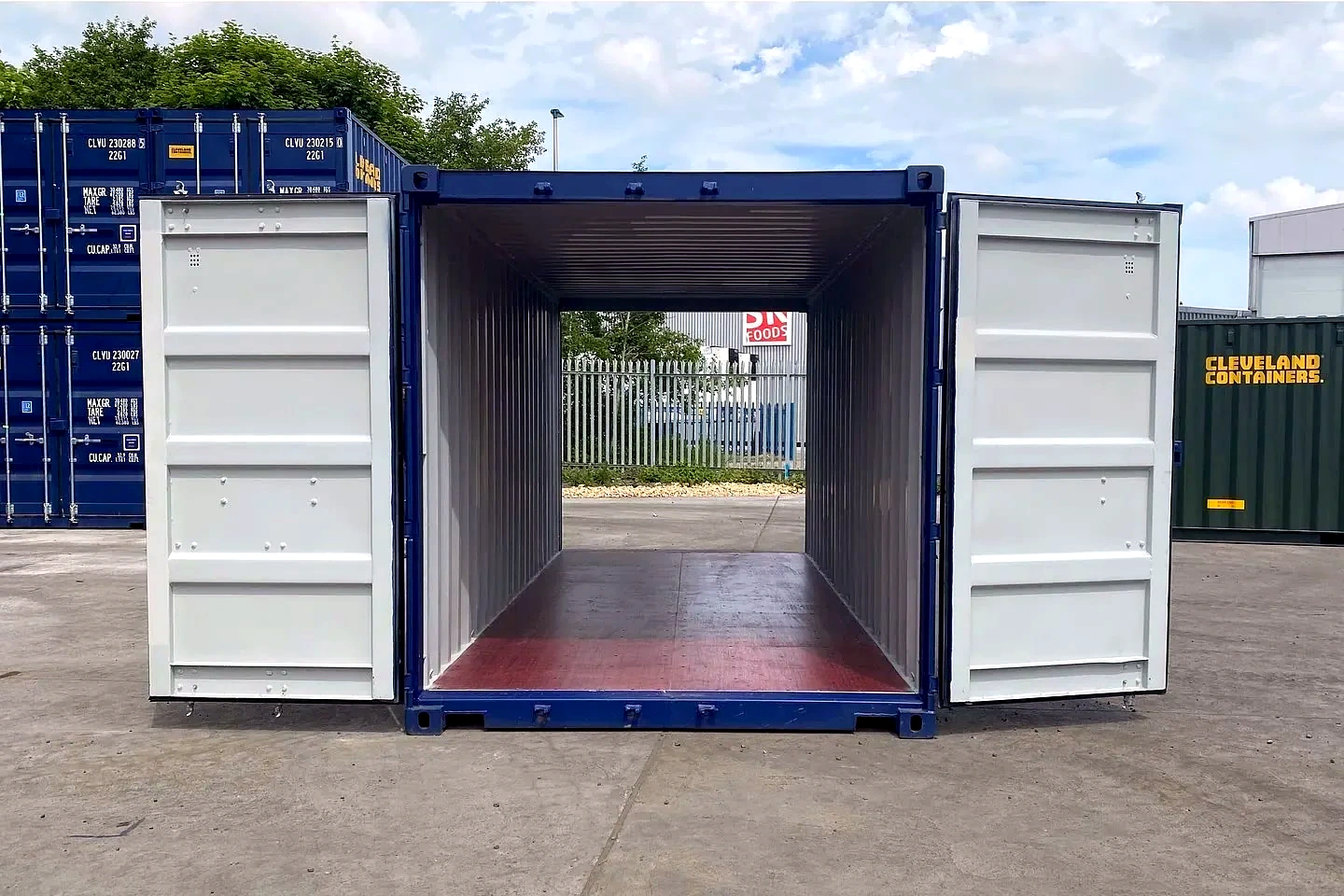

| Door Configuration | Heavy-duty double swing cargo doors at both ends |
| Number of Accessible Ends | 2 |

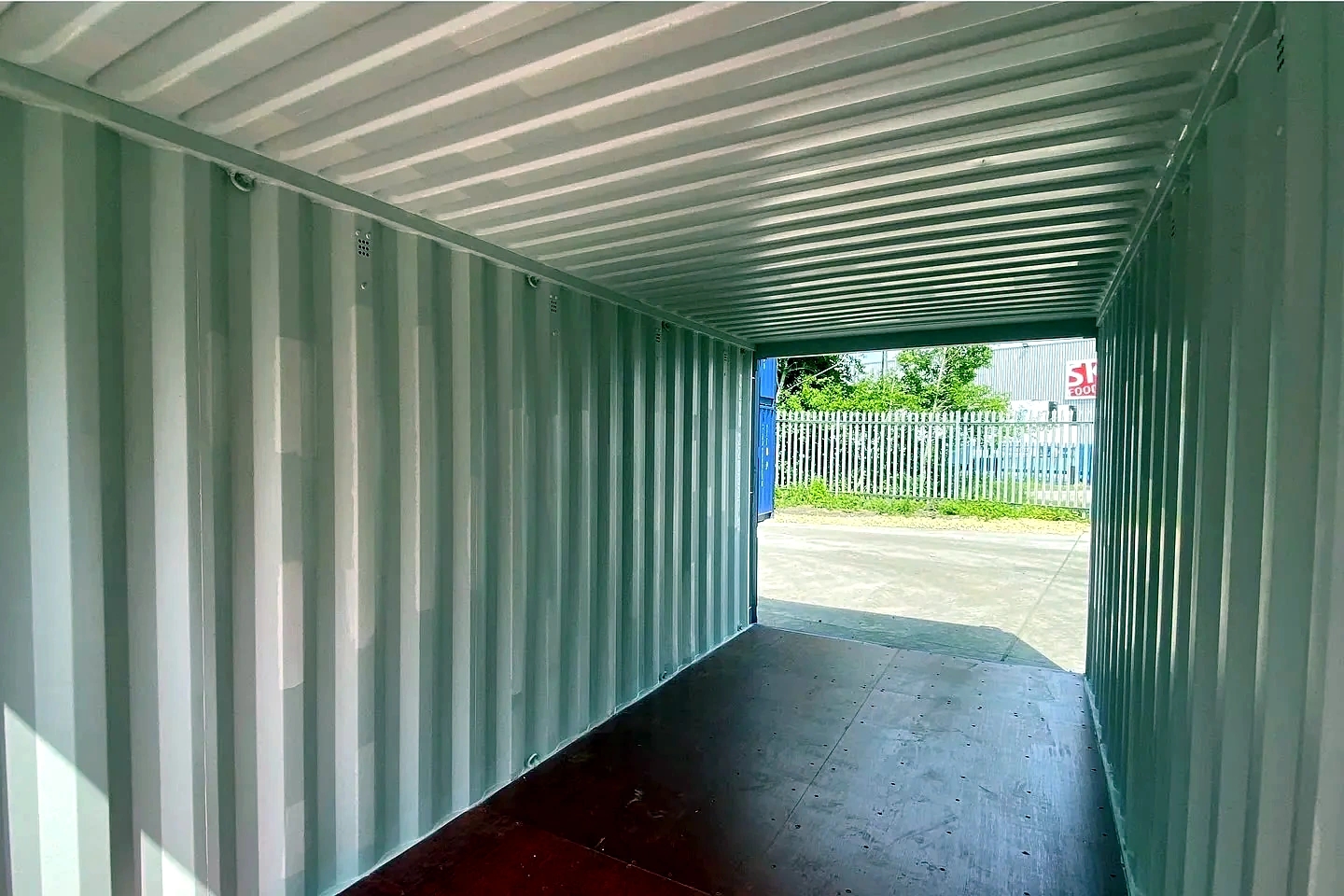

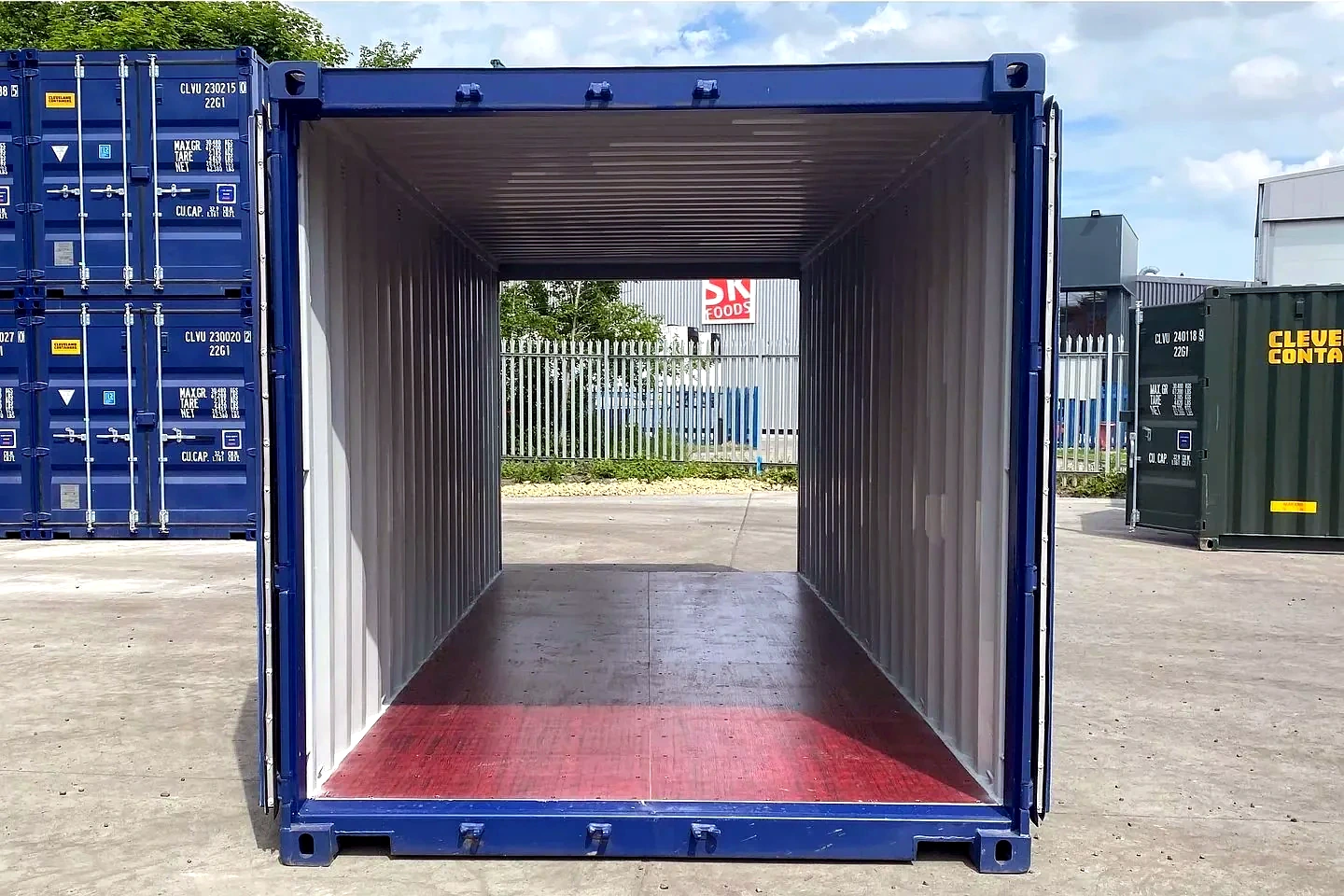

| Tunnel Access | Yes – goods can be loaded or unloaded from either end |
| Door Opening | Approx. 2,340 mm wide × 2,280 mm high on comparable Australian units |
| Construction Material | Heavy-duty Corten weathering steel |
| CSC Plate | Yes – reference product is CSC plated |
| Maximum Gross Weight | Reference lists max. approximately 30 tonnes; comparable Australian specification is 30,480 kg |
| Indicative Tare Weight | Approx. 2,180–2,450 kg depending on manufacturer |
| Indicative Payload | Approx. 28,000 kg, subject to individual CSC plate |
| Internal Volume | Approx. 33 m³ |
| Flooring | Heavy-duty 28 mm marine-grade plywood |
| Floor Support | Structural steel cross members |
| Locking Bars | Two locking bars per cargo door |
| Security Lockbox | Factory-fitted lockbox at both ends |
| Door Seals | Heavy-duty rubber cargo-door seals |
| Forklift Pockets | Yes – reference specification lists two forklift pockets on each side |
| Ventilation | Reference product fitted with 4 vents |
| Weather Protection | Wind- and watertight container construction |
| Corrosion Resistance | Corten steel designed for demanding outdoor and marine environments |
| Corner Castings | Standard ISO-style reinforced corner castings |
| Through-Loading | Excellent – straight-through access makes loading long goods considerably easier |
| Forklift Loading | Excellent – forklift can approach cargo from either end |
| Pallet Storage | Suitable for palletised goods and frequently rotated inventory |
| Long Materials | Ideal for timber, pipes, steel sections, extrusion and other long items |
| Machinery Storage | Suitable for machinery, tools, generators and industrial equipment |
| Construction Use | Suitable for site tools, building products and equipment |
| Agricultural Use | Suitable for feed, machinery, tools and farm supplies |
| Warehouse Use | Ideal for inventory that needs access from both ends |
| Self-Storage Use | Container can be partitioned internally to create two separate storage units |
| Stock Rotation | Useful for first-in/first-out stock handling where goods enter one end and leave the other |
| Workshop Use | Suitable for conversion into a workshop or equipment store |
| Retail Conversion | Can be used for walk-through pop-up shops, displays and exhibitions |
| Partitioning Option | Can be divided into two approximately 10ft storage sections |
| Shelving Option | Internal shelving or storage racks can be installed |
| Electrical Upgrade | Lighting, outlets and electrical boards can be fitted |
| Insulation Option | Walls and ceiling can be insulated |
| Security Upgrades | Additional locks, alarms and internal security systems can be installed |
| Primary Advantage | Cargo doors at both ends provide true tunnel-style through-access |
| Delivery Method | Tilt-tray, side-loader or crane truck depending on delivery site |
| Site Requirement | Firm, level surface with adequate access at both ends if tunnel functionality is required |
| Best Applications | Warehousing, construction, agriculture, pallet storage, long goods, self-storage and commercial conversions |
